SS2 FLOAT SWITCH 3/4

SS2 FLOAT SWITCH 3/4

$12.99 USD
$12.99 USD
Sale Sold out
Shipping calculated at checkout.

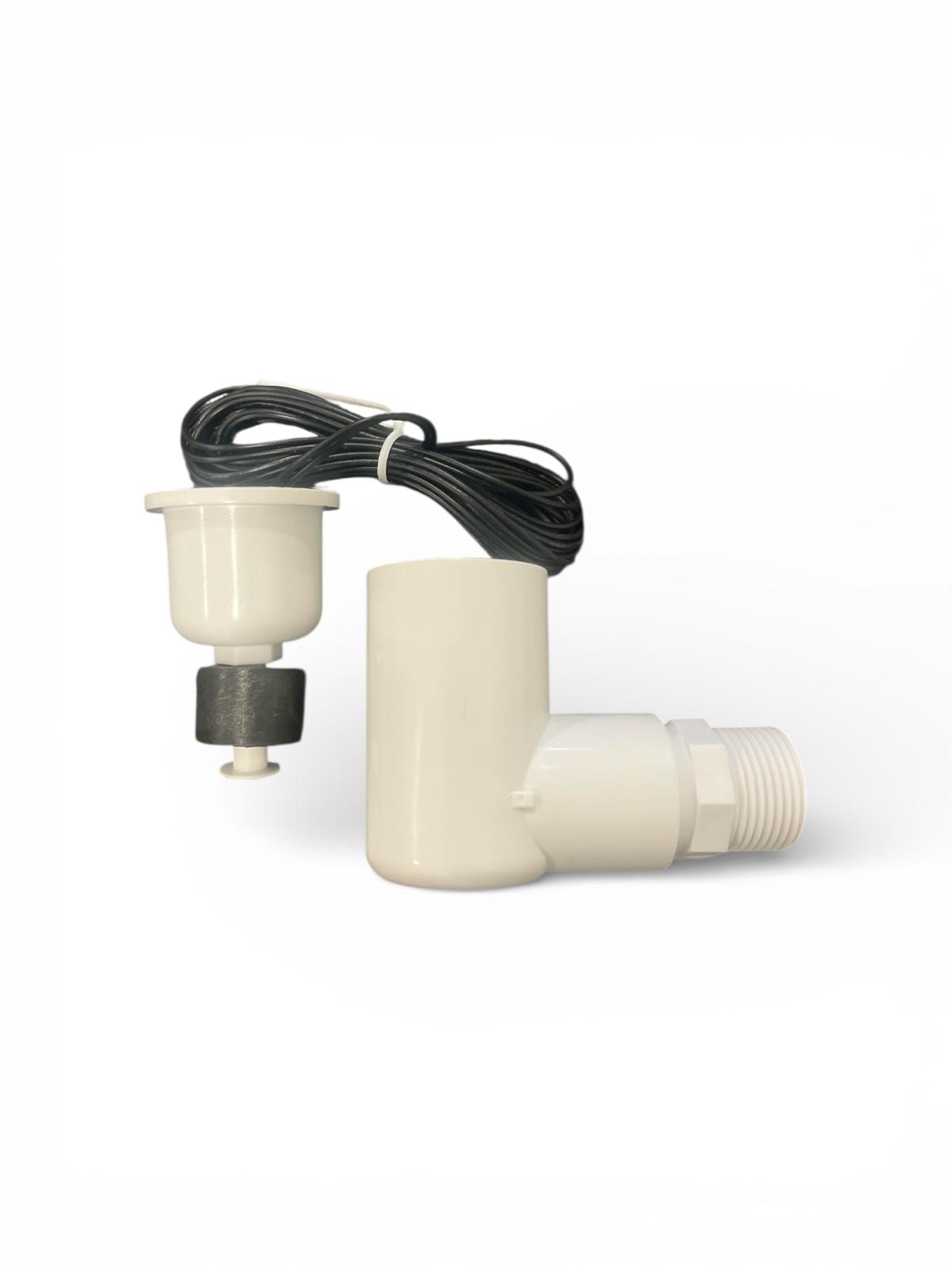

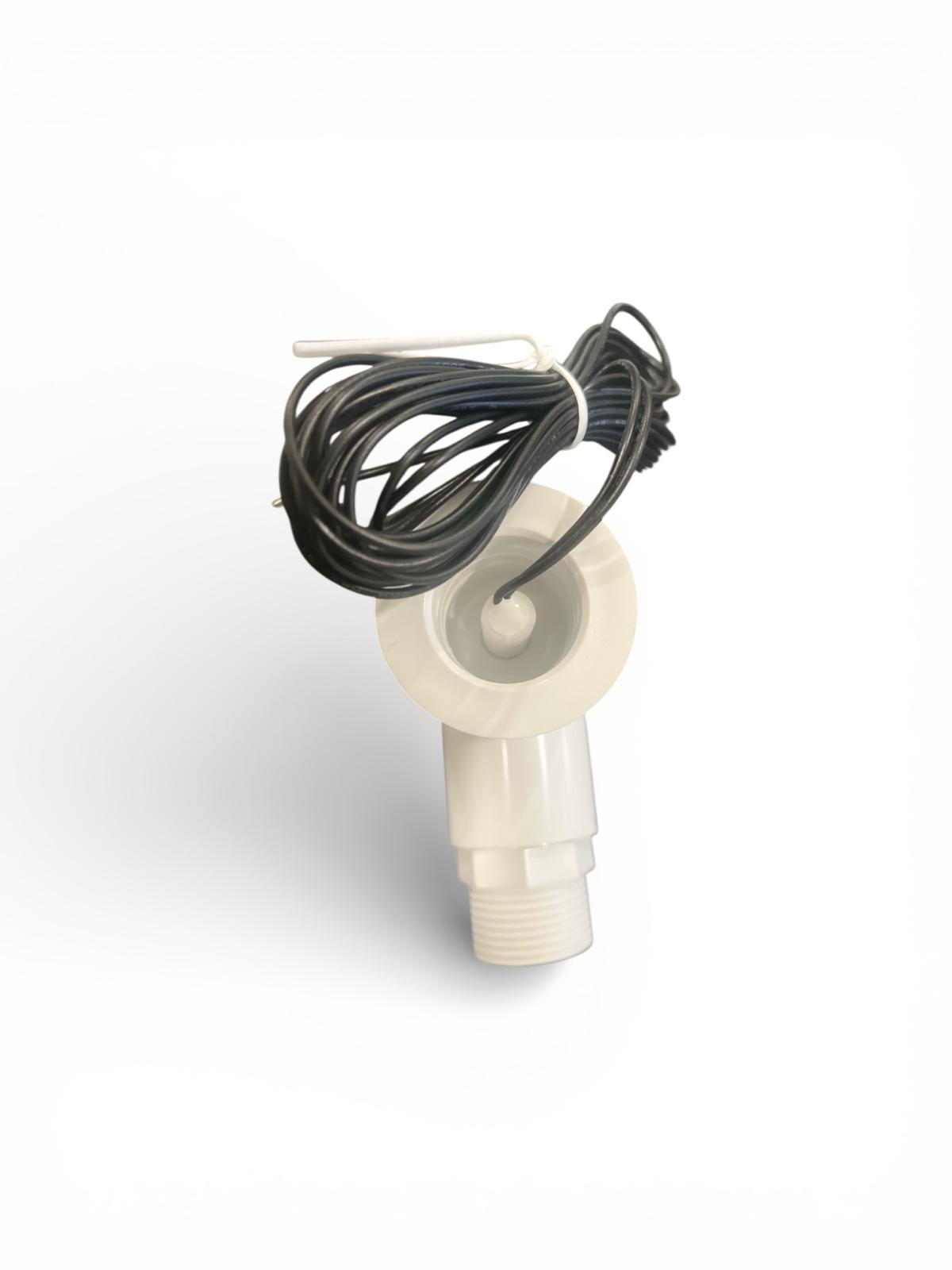

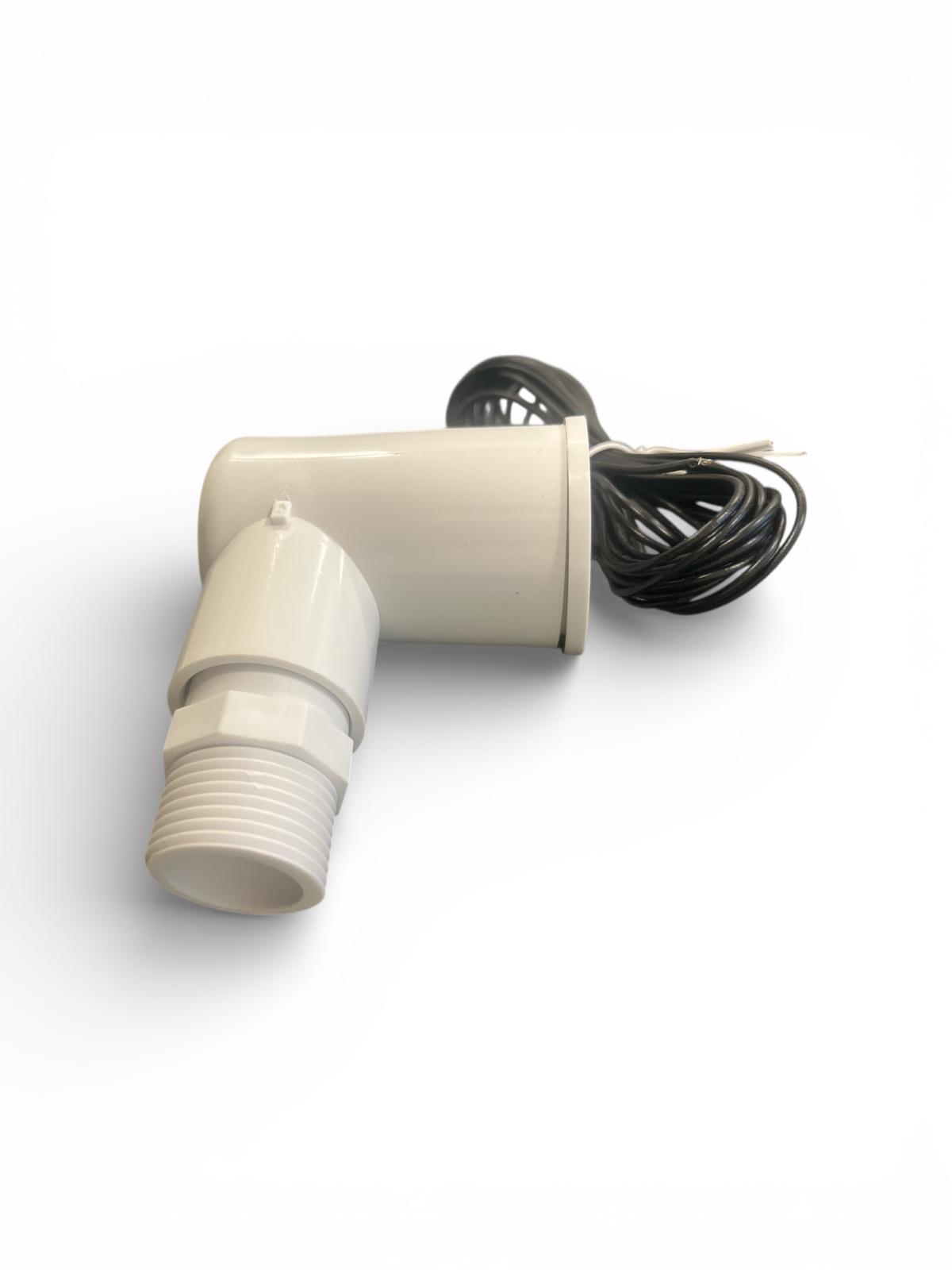

 Condensate Drain Float Switch – USACLIMAX LLS-SS2

The USACLIMAX LLS-SS2 Float Switch is a safety device designed to detect condensate water overflow in HVAC systems and automatically shut down the unit, preventing water damage to ceilings, walls, and floors.

It is an essential accessory for professional mini-split and air conditioning installations, especially in humid climates like Florida.

 Main Function

Detects water buildup or blockages in the condensate drain line.

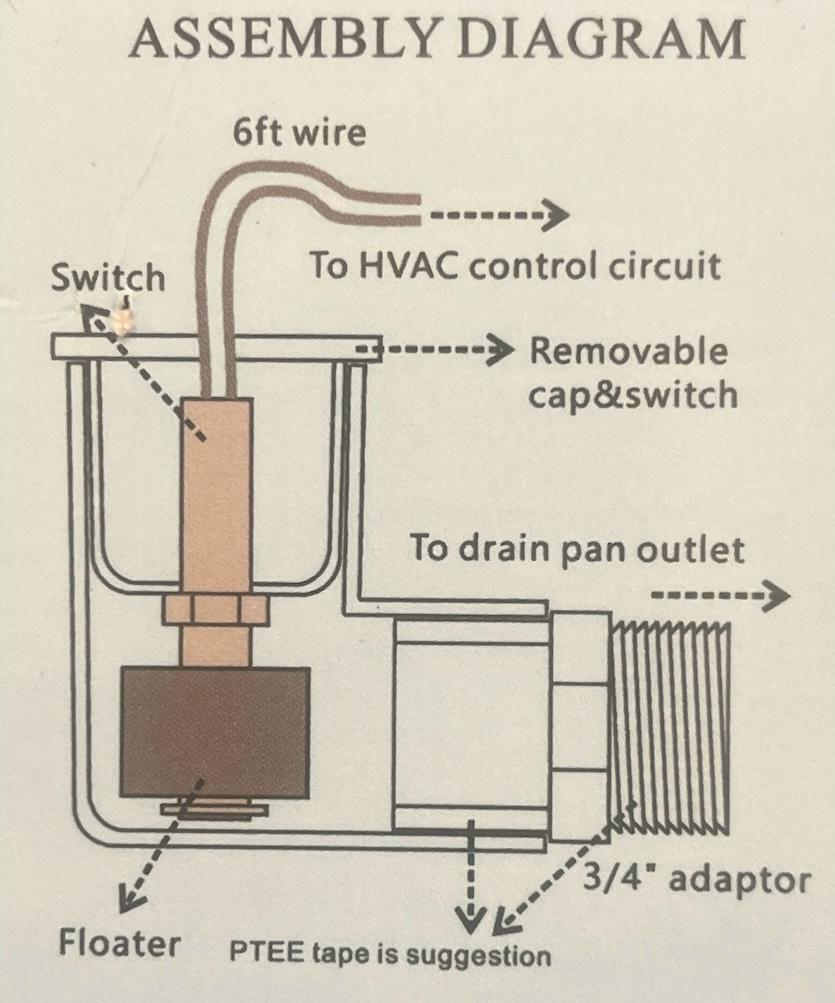

When the water level rises, the float activates the switch and cuts the HVAC control signal, protecting the system from overflow damage.

⚙️ Key Features
• ✔️ Compatible with HVAC systems, mini-splits, and air handlers
• ✔️ Direct installation on auxiliary drain outlet or condensate drain pan
• ✔️ Removable cap design for easy cleaning and maintenance
• ✔️ Normally Closed (NC) switch
• ✔️ Includes standard 3/4” adapter
• ✔️ Approximately 6 ft (1.8 m) connection cable
• ✔️ Does not require perfect leveling to operate
• ✔️ Ideal for residential and light commercial use

🔌 Electrical Specifications
• Maximum voltage: 200 VDC / 250 VAC
• Maximum current: 1 A
• Recommended voltage: 0–28 VDC / 0–110 VAC
• Recommended current: 0–0.2 A (control signal)
• Operating temperature: -20 °C to 80 °C

⚠️ Note: Designed for low-current control circuits. A relay is recommended for higher loads.

🛠️ Common Applications
• Residential mini-split systems
• Attic air handlers
• HVAC systems with condensate drainage
• Water damage prevention
• Local code and inspection compliance

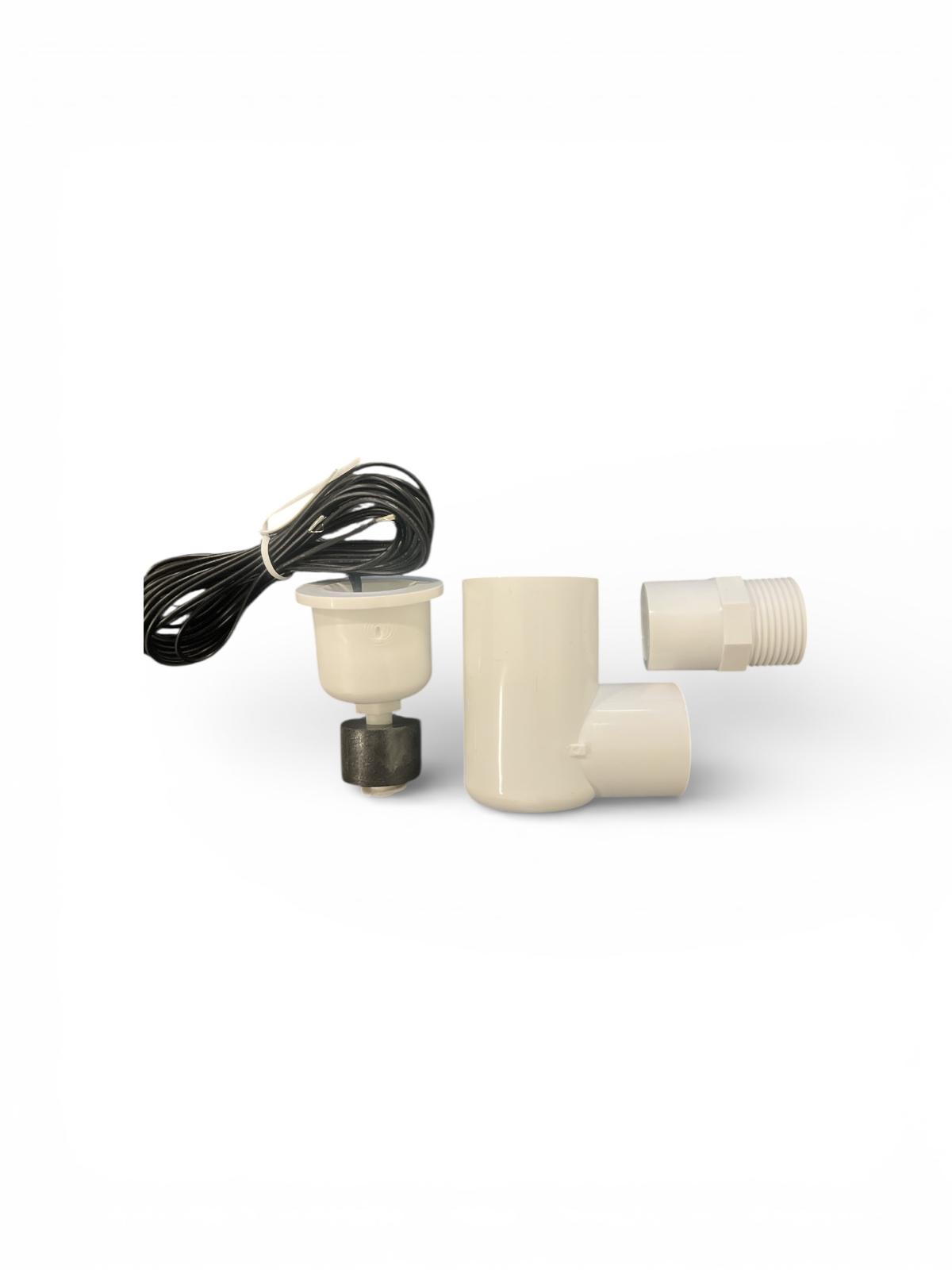

📦 Package Includes
• USACLIMAX LLS-SS2 float switch
• 3/4” drain adapter
• Pre-installed cable

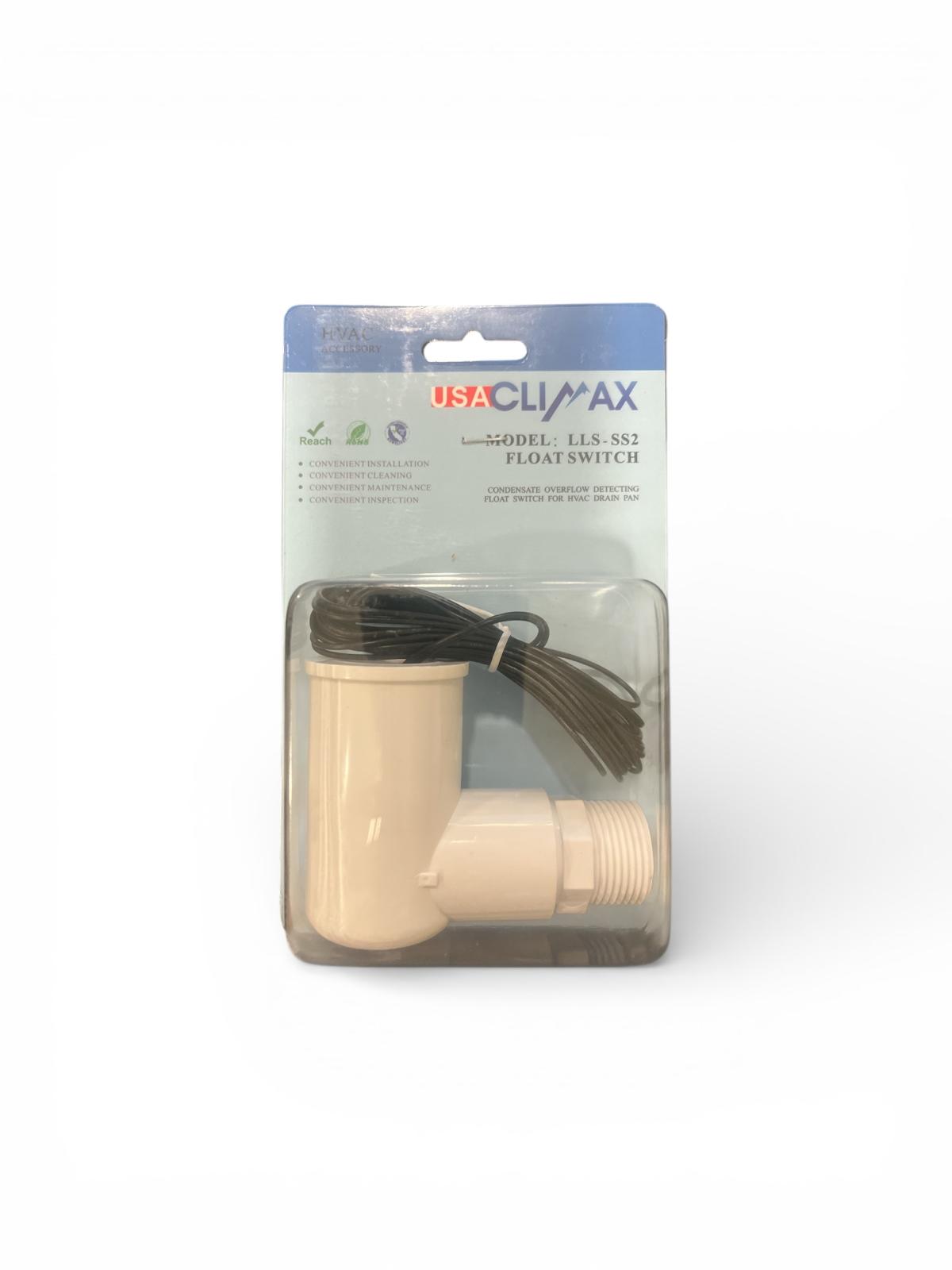

• Sealed retail packaging, ready for installation

🏆 Why Choose USACLIMAX?

USACLIMAX is a specialized HVAC supply provider based in Tampa, Florida, focused on reliable, installer-friendly products designed for professional use.
